2 x 4 Pole AC1 Rated Contactors

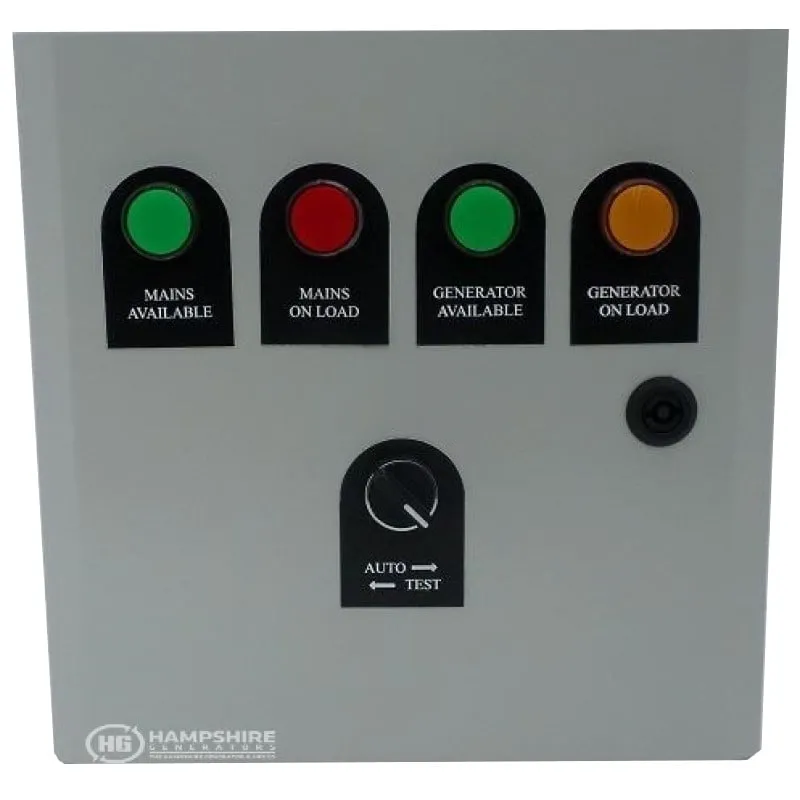

This 100A automatic transfer switch ATS (3000ATS) is only compatible with the following single phase Hyundai Generators. The ATS comes with a 5 Amp battery charger and 20M of communication cable as standard. Hyundai specific connectors are on the end of the comms cable to allow you to connect the ATS to the Hyundai generator.
It is essential that you service and maintain your generators regularly. Excel Power Equipment is fully taken care of in the UK with engineer support— giving you full peace of mind.
This transfer switch should be permanently installed close to the mains incoming supply to your building. In normal operation the load is supplying by the mains in the usual way but when the mains power is lost the ATS switch senses this loss and sends a signal to start your generator.
When the generator has started and is up to speed and frequency (normally around 8 to 10 seconds) this automatic changeover switch will automatically transfer the load to the standby generator set.
The automatic transfer switch will continually monitor the mains power and when this returns it will transfer the load back to the mains and initiate a cooling cycle and stop the generator. The transfer switch will then reset in readiness for the next power interruption.
The system is intended to be installed by a professional electrician with experience in standby power. Please contact Hampshire Generators if you need any assistance. Hampshire Generators can also maintain your generator with a regular cost-effective service plan or one-off visit. Simply call 01329 722390 or inquire via contact us page for more information.
